Pearl: High Performance 867Mbps Radio with 2×2 MIMO
CableFree Pearl: MIMO OFDM Radio
CableFree Pearl is a high performance MIMO radio from Wireless Excellence, with high performance, carrier-class broadband radio equipment with throughput up to 867Mbps in licensed or unlicensed bands.
The CableFree range of MIMO OFDM radios has superior throughput, features and performance and are widely used in Enterprise, Wireless ISP, Government, CCTV security applications worldwide.
Watch the CableFree Pearl Introduction Video:
Advanced Technology:
Major technology advantages of CableFree includes:
- High capacity up to 867Mbps
- Advanced modulation up to 256QAM
- Customisable channels from 10MHz up to 80MHz
- Point to Point (P2P) and Point to Multipoint (P2MP)
- Low Power Consumption for Off-grid Solar & Battery
- Rugged, full-outdoor design suits long-term operation in harsh climates
- Integrated high gain antenna: Avoid interference, Extend range
- Advanced RadioOS software includes routing & bandwidth control
- Low Latency & CCTV-optimised. Supports 4.9GHz, 5GHz & 2.4GHz bands
- CableFreeMAX Advanced Framing and Polling technology to increase throughput and remove “ACK timing” limitations faced by conventional TDD / CSMA radios
CableFree Pearl Models
CableFree Pearl comes in a different options including high performance radio with up 867Mbps AC or 300Mbps 2×2 MIMO OFDM radio operating in the 4.9-6.1GHz unlicensed and licensed bands. 2.4GHz Model is available covering 2.3-2.5GHz
PDF Datasheet
CableFree Pearl LC
The LC is a lower-cost variant for cost-sensitive applications. Offering the same high throughput as CableFree Pearl, with lower-cost housing for even the most demanding price points
Please Contact Us
Applications
CableFree MIMO Radio links are used in a wide range of applications including Backhaul, Wireless ISPs, CCTV for Safe Cities, Police, Law Enforcement, Fire, Port and Border Security ANPR applications.
CableFree radios can also be used as part of CableFree UNITY solutions along with FSO and MMW technologies to increase range, throughput and availability.
MIMO Radio is an attractive alternative to fixed copper or fibre networks and leased lines. Wireless links can be installed at a tiny fraction of the cost of trenched or leased fibre, providing a rapid Return On Investment (ROI). Links can be rapidly deployed in a single day, rather than waiting weeks or months for fibre circuits. MIMO Radio provides an ideal alternative resilient path to mission critical cabled links where outage could cause severe loss-of-revenue or operational disruption.
Accessories for CableFree Radios
Please use Surge Suppression when installing CableFree Radios where appropriate. Both Ethernet (POE) and RF (0-6GHz, with DC passthrough) Surge Arresters are available for various different types of installations. Always ensure safety of personnel as well as equipment when installing CableFree Wireless solutions. If in doubt, consult a qualified electrician.

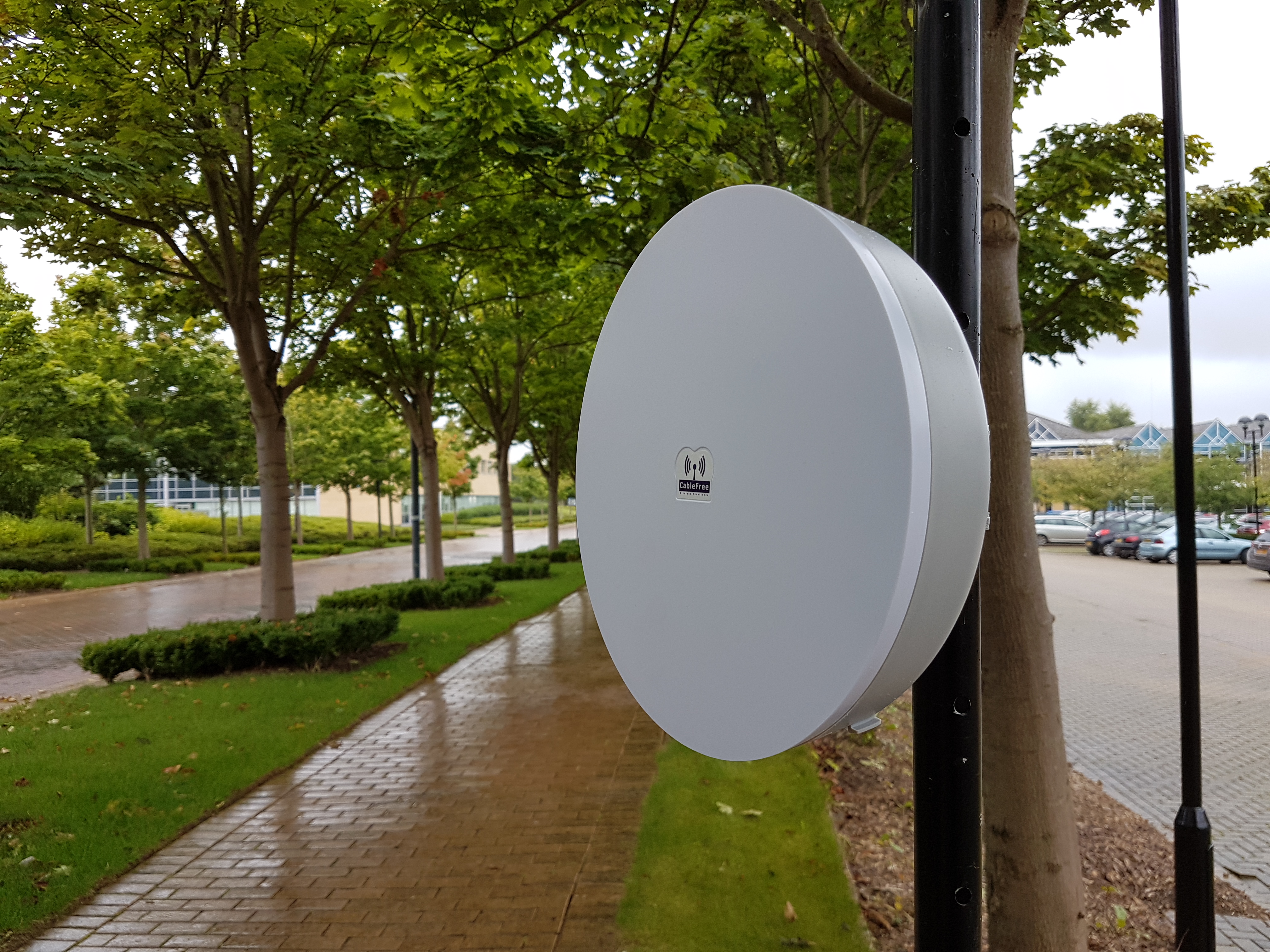

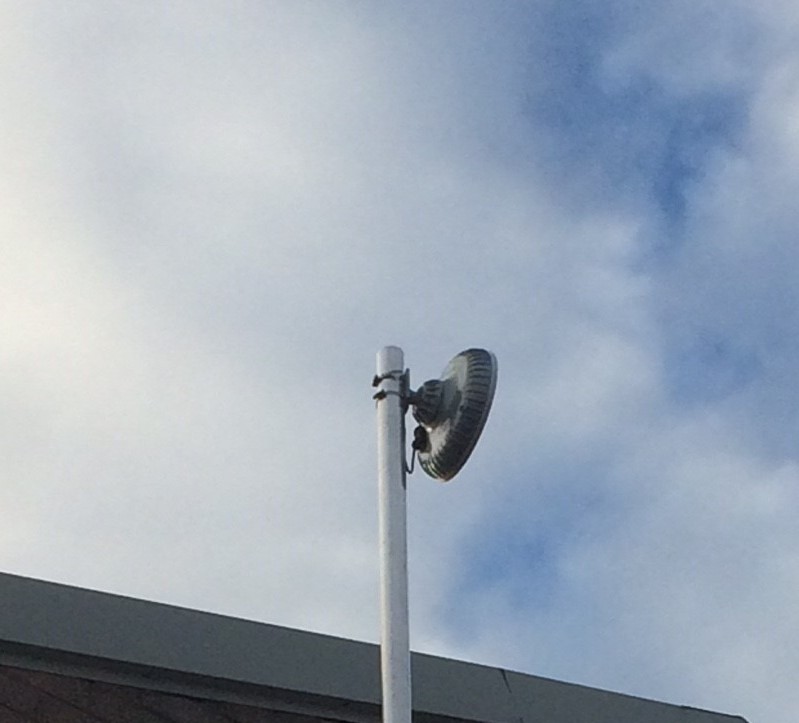

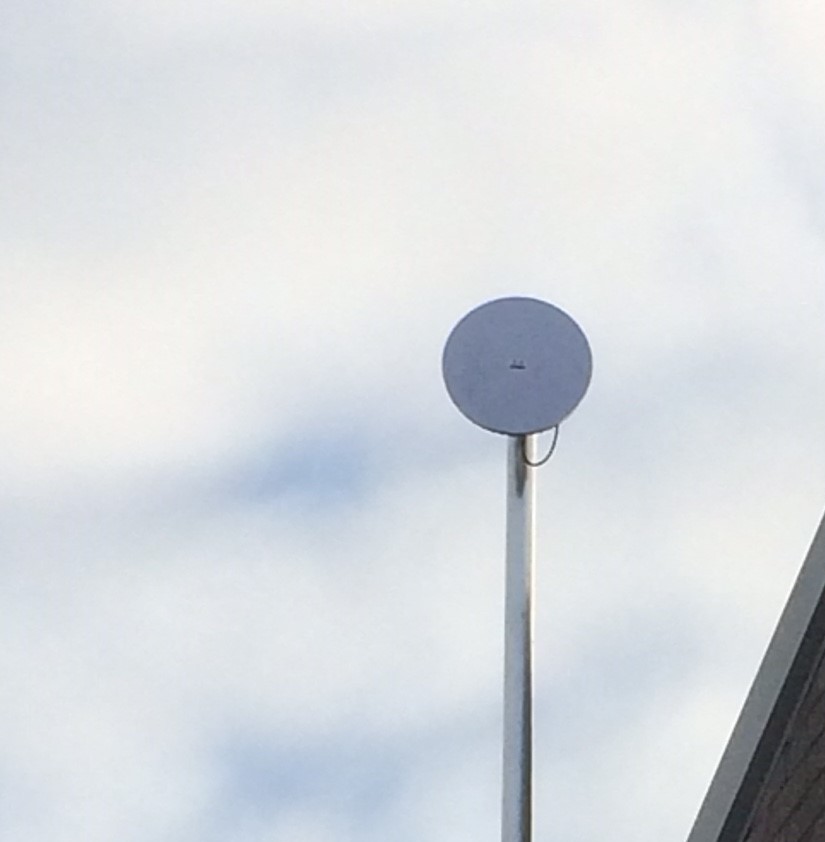

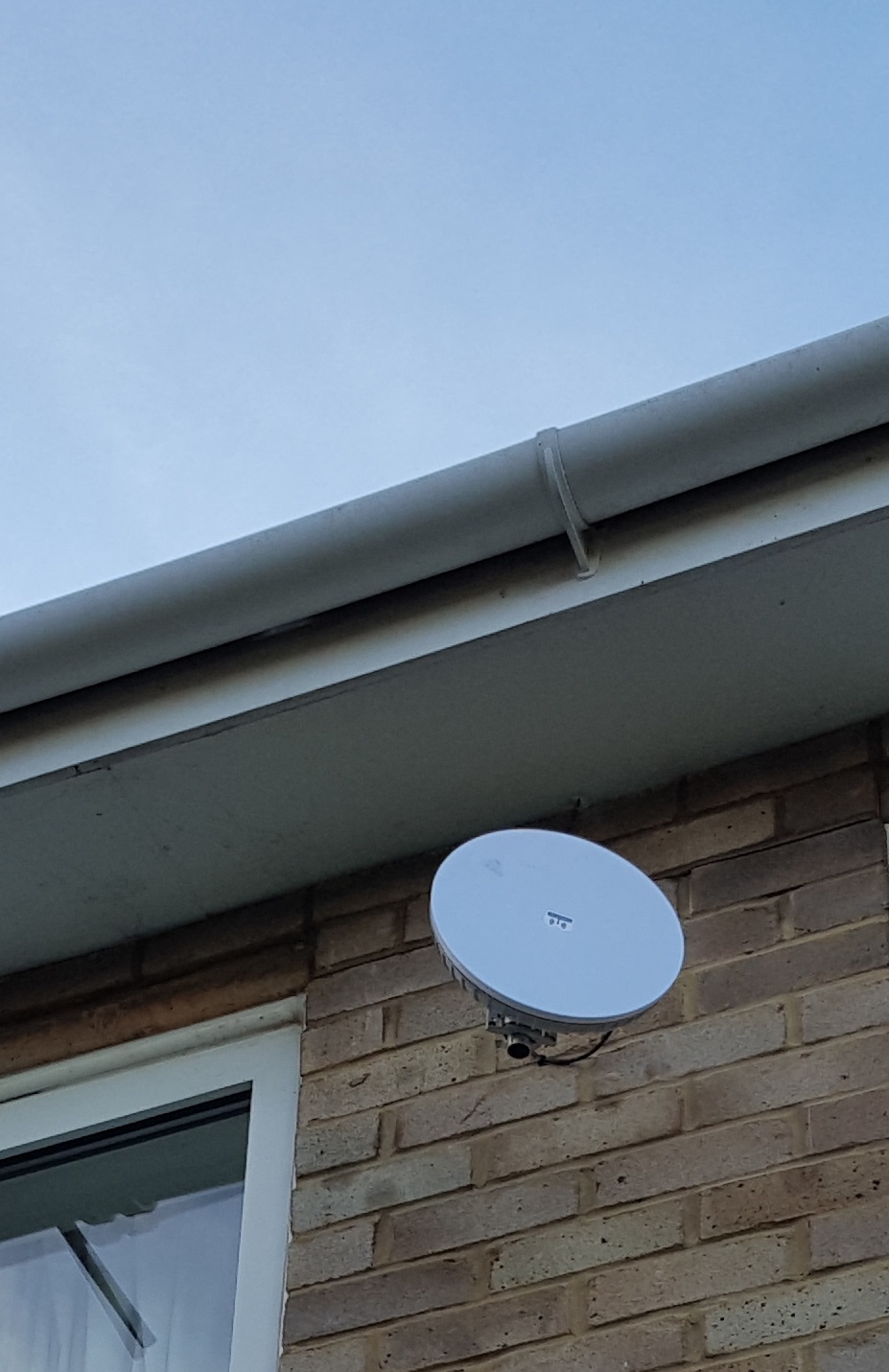

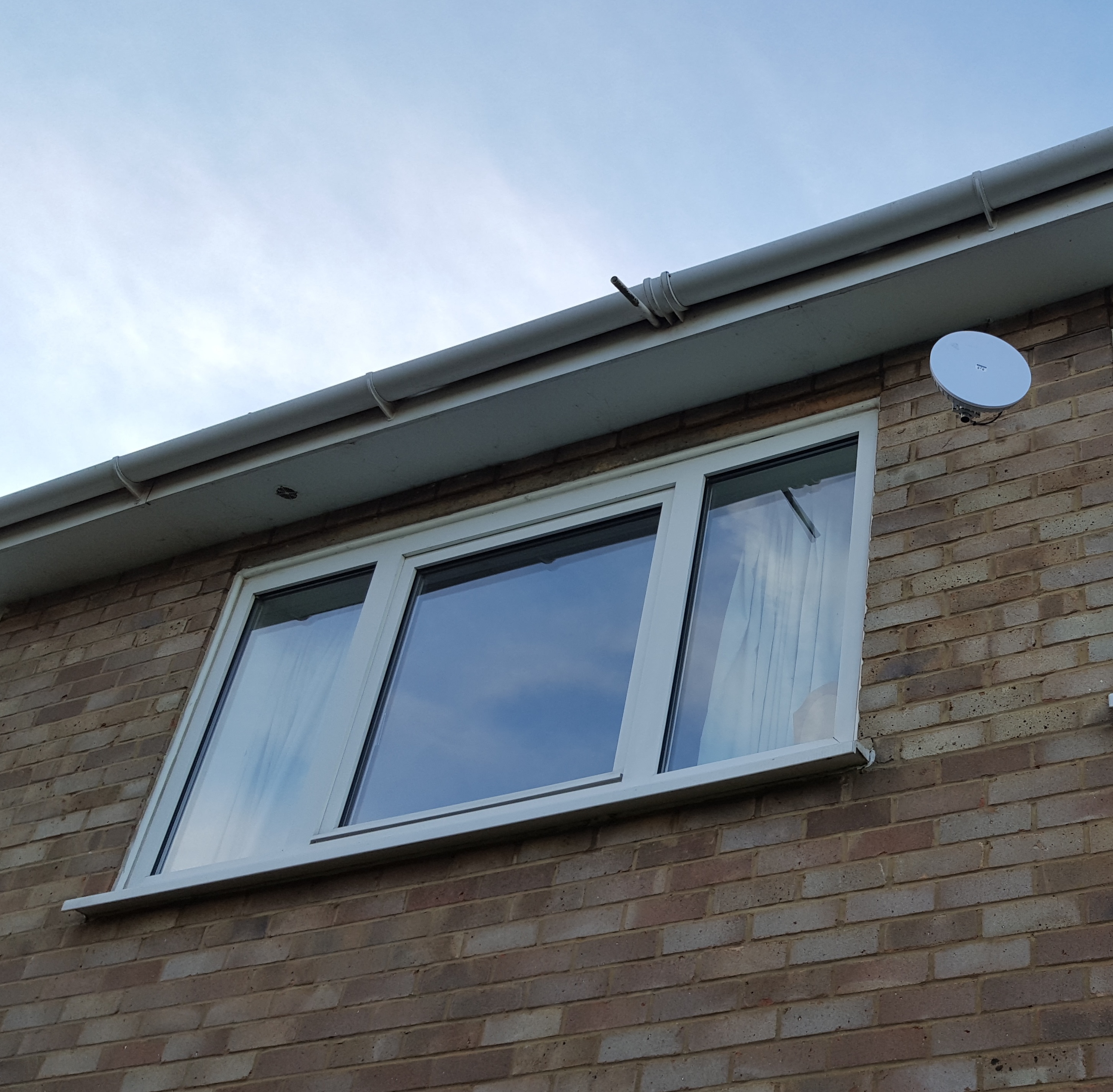

Installation Examples
Request More Information
For further information on the range of CableFree wireless networking products:
Please Contact Us
Technology Overview
We have many white papers and pages on Radio Technology to guide and assist users. Some of the most popular ones are listed here:
- Introduction to MIMO Radio Technology
- Introduction to OFDM Technology
- Explaining QAM Modulation
- Explaining Fresnel Zone
